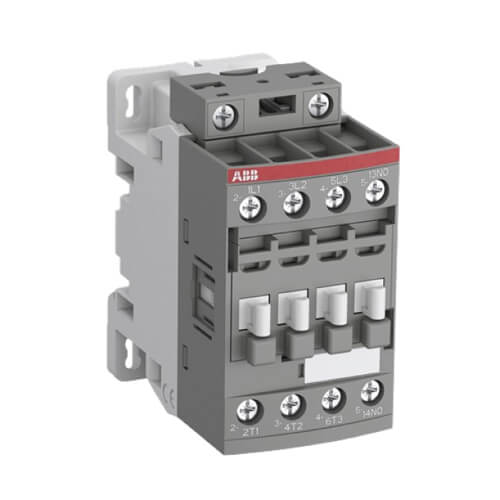

ABB AF09 … AF38 3-Pole Contactor (AC/DC Operating Voltage)

ABB AF09 … AF38 3-Pole Contactor (AC/DC Operating Voltage)

3-phase, 400 V motor
AF09 … AF38 3-pole contactors
AC-3 rating 9A ~ 38A, 4kW ~ 18.5kW

  • Electronic coil interface with wide AC/DC operating voltage
  • Electronic coil interface accepting a wide control voltage, Uc
  • Built-in surge protection

Categories: , ,

Specification

Power (kW)AC-3 (A)AC-1(A)Control voltage, UcAuxiliary ContactTypeOrder Code
50/60HzV DCN/ON/C
492524…60
24…60
48…130
48…130		20…60
20…60
48…130
48…130		1
0
1
0		0
1
0
1		AF09-30-10-11
AF09-30-01-11
AF09-30-10-12
AF09-30-01-12		1SBL137001R1110
1SBL137001R1101
1SBL137001R1210
1SBL137001R1201
4925100…250
100…250
250…500
250…500		100…250
100…250
250…500
250…500		1
0
1
0		0
1
0
1		AF09-30-10-13
AF09-30-01-13
AF09-30-10-14
AF09-30-01-14		1SBL137001R1310
1SBL137001R1301
1SBL137001R1410
1SBL137001R1401
5.5122824…60
24…60
48…130
48…130		20…60
20…60
48…130
48…130		1
0
1
0		0
1
0
1		AF12-30-10-11
AF12-30-01-11
AF12-30-10-12
AF12-30-01-12		1SBL157001R1110
1SBL157001R1101
1SBL157001R1210
1SBL157001R1201
5.51228100…250
100…250
250…500
250…500		100…250
100…250
250…500
250…500		1
0
1
0		0
1
0
1		AF12-30-10-13
AF12-30-01-13
AF12-30-10-14
AF12-30-01-14		1SBL157001R1310
1SBL157001R1301
1SBL157001R1410
1SBL157001R1401
7.5183024…60
24…60
48…130
48…130		20…60
20…60
48…130
48…130		1
0
1
0		0
1
0
1		AF16-30-10-11
AF16-30-01-11
AF16-30-10-12
AF16-30-01-12		1SBL177001R1110
1SBL177001R1101
1SBL177001R1210
1SBL177001R1201
7.51830100…250
100…250
250…500
250…500		100…250
100…250
250…500
250…500		1
0
1
0		0
1
0
1		AF16-30-10-13
AF16-30-01-13
AF16-30-10-14
AF16-30-01-14		1SBL177001R1310
1SBL177001R1301
1SBL177001R1410
1SBL177001R1401
11264524…60
48…130
100…250
250…500		20…60
48…130
100…250
250…500		1
1
1
1		1
1
1
1		AF26-30-11-11
AF26-30-11-12
AF26-30-11-13
AF26-30-11-14		1SBL237001R1111
1SBL237001R1211
1SBL237001R1311
1SBL237001R1411
15325024…60
48…130
100…250
250…500		20…60
48…130
100…250
250…500		1
1
1
1		1
1
1
1		AF30-30-11-11
AF30-30-11-12
AF30-30-11-13
AF30-30-11-14		1SBL277001R1111
1SBL277001R1211
1SBL277001R1311
1SBL277001R1411
18.5385024…60
48…130
100…250
250…500		20…60
48…130
100…250
250…500		1
1
1
1		1
1
1
1		AF38-30-11-11
AF38-30-11-12
AF38-30-11-13
AF38-30-11-14		1SBL297001R1111
1SBL297001R1211
1SBL297001R1311
1SBL297001R1411
