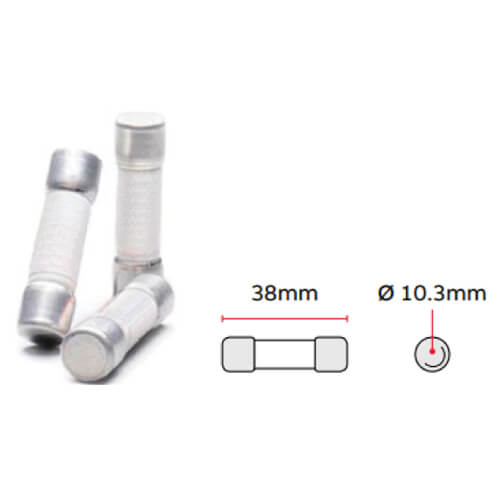

ABB E 9F PV Cylindrical Fuses

ABB E 9F PV Cylindrical Fuses

  • Standard: IEC/EN 60269-6
  • Rated voltage: 1000VDC
  • Utilization category: gPV
  • Breaking capacity: 50kA
  • Minimum breaking capacity:
    From 1 A up to 7 A = 1.3 x In
    From 8 A up to 30 A = 2.0 x In
    Fuse size : 10.3 x 38 mm

Categories: , ,

Specification

Rated current (A)ModelOrder Code
1
2		E 9F1 PV
E 9F2 PV 		2CSM213456R1801
2CSM213466R1801
3
4
5		E 9F3 PV
E 9F4 PV
E 9F5 PV		2CSM213476R1801
2CSM213486R1801
2CSM213496R1801
6
7
8		E 9F6 PV
E 9F7 PV
E 9F8 PV		2CSM213506R1801
2CSM213516R1801
2CSM213526R1801
10
12
15		E 9F10 PV
E 9F12 PV
E 9F15 PV		2CSM213536R1801
2CSM213546R1801
2CSM213556R1801
20
25
30		E 9F20 PV
E 9F25 PV
E 9F30 PV		2CSM213566R1801
2CSM213576R1801
2CSM213586R1801
