Specification
| Type | Rated Control Voltage 50/60Hz | Output Relays | Tripping delay Tv | Order Code |
|---|---|---|---|---|
| CM-ESS.2S | 24-240V AC/DC | 2 c/o contacts | adjustable 0 or 0.1-30s | 1SVR730830R0400 |

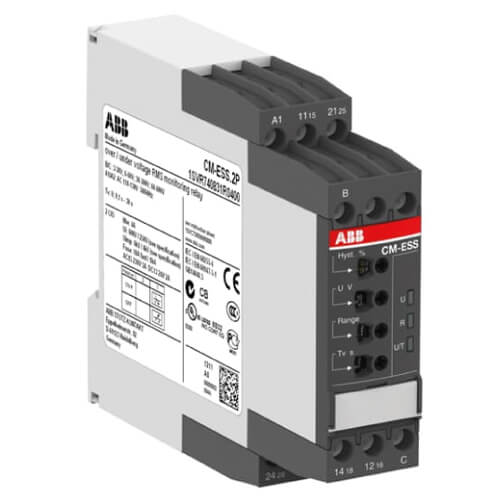

ABB Voltage monitoring relays, single-phase AC/DC CM-ESS.2S
- Monitoring of DC or AC voltages from 3-600 V
- One device includes 4 measuring ranges
- Over–and undervoltage monitoring configurable
- 3 supply voltage versions
- 3 LEDs for status indication
- 22.5mm width
- Double-chamber cage connection terminals
- Measuring ranges: 3-30V; 6-60V; 30-300V; 60-600V
