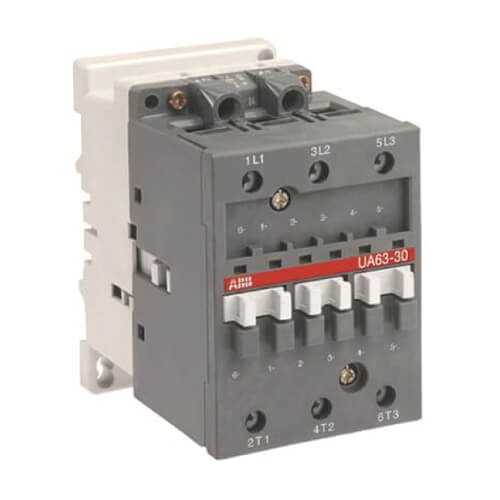

ABB UA Range Capacitor Switching Contactors

ABB UA Range Capacitor Switching Contactors

UA16 … UA110 3-pole contactors
AC-6b rating 12.5kvar ~ 75kvar at 400Vac rated operation voltage

  • Application in which the Peak Current is Less than or equal to
    100 times Nominal RMS Current
  • High Electrical Durability (100,000 Operating Cycles)
  • Comply to AC-6b Utilization Category (in accordance to IEC60947-4-1)
    State coil voltage… (See Table Below)

Categories: , ,

Specification

Rated Power 400V
(kVAr)		Auxiliary ContactTypeOrder Code
N/ON/C
12.5
20
27.5
33		1
1
1
–		–
–
–
–		UA 16-30-10 . . .
UA 26-30-10 . . .
UA 30-30-10 . . .
UA 50-30-00 . . . 		1SBL181022R..10
1SBL241022R..10
1SBL281022R..10
1SBL351022R..00
45
50
65
75		–
–
–
–		–
–
–
–		UA 63-30-00 . . .
UA 75-30-00 . . .
UA 95-30-00 . . .
UA 110-30-00 . . . 		1SBL371022R..00
1SBL411022R..00
1SFL431022R..00
1SFL451022R..00

Coil Voltage and Codes

Voltage – 50HzVoltage – 60HzCode…
110
220-230
230-240
380-400
400-415		110-120
230-240
240-260
400-415
415-440		84
80
88
85
86
