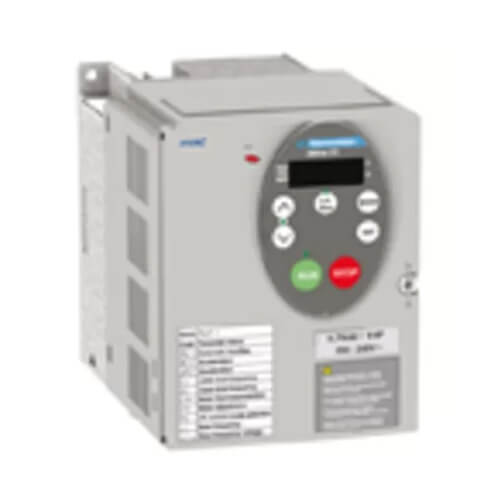

Specification
| Three-phase supply voltage: 380…480 V 50/60 Hz | ||||||||
|---|---|---|---|---|---|---|---|---|
| Drives with an integrated class A EMC filter | ||||||||
| Motor | Line | Altivar 21 | Reference | |||||
| Power indicated on plate on plate (1) | Line current | Apparent power | Maximum prospective line Isc | Max. continuous rated current | Max. transient current for 60 s | |||
| 380 V | 480 V | 380 V | 380 V/460 V | |||||
| kW | HP | A | A | kVA | kA | A | A | |
| 0.75 | 1 | 1.7 | 1.4 | 1,1 | 5 | 2.2 | 2.4 | ATV 21W075N4 |
| 1.5 | 2 | 3.2 | 2.5 | 2,1 | 5 | 3.7 | 4 | ATV 21WU15N4 |
| 2.2 | 3 | 4.6 | 3.6 | 3,0 | 5 | 5.1 | 5.6 | ATV 21WU22N4 |
| 3 | – | 6.2 | 4.9 | 4,1 | 5 | 7.2 | 7.9 | ATV 21WU30N4 |
| 4 | 5 | 8.1 | 6.4 | 5,3 | 5 | 9.1 | 10 | ATV 21WU40N4 |
| 5.5 | 7.5 | 10.9 | 8.6 | 7,2 | 22 | 12 | 13.2 | ATV 21WU55N4 |
| 7.5 | 10 | 14.7 | 11.7 | 9,7 | 22 | 16 | 17.6 | ATV 21WU75N4 |
| 11 | 15 | 21.2 | 16.9 | 13,9 | 22 | 22.5 | 24.8 | ATV 21WD11N4 |
| 15 | 20 | 28.4 | 22.6 | 18,7 | 22 | 30.5 | 33.6 | ATV 21WD15N4 |
| 18.5 | 25 | 34.9 | 27.8 | 22,9 | 22 | 37 | 40.7 | ATV 21WD18N4 |
| 22 | 30 | 41.6 | 33.1 | 27,3 | 22 | 43.5 | 47.9 | ATV 21WD22N4 |
| 30 | 40 | 56.7 | 44.7 | 37,3 | 22 | 58.5 | 64.4 | ATV 21WD30N4 |
| 37 | 50 | 68.9 | 54.4 | 45,3 | 22 | 79 | 86.9 | ATV 21WD37N4 |
| 45 | 60 | 83.8 | 65.9 | 55,2 | 22 | 94 | 103.4 | ATV 21WD45N4 |
| 55 | 75 | 102.7 | 89 | 67,6 | 22 | 116 | 127.6 | ATV 21WD55N4 |
| 75 | 100 | 141.8 | 111.3 | 93,3 | 22 | 160 | 176 | ATV 21WD75N4 |
| Three-phase supply voltage: 380…480 V 50/60 Hz | ||||||||
|---|---|---|---|---|---|---|---|---|
| Drives with an integrated class B EMC filter | ||||||||
| Motor | Line | Altivar 21 | Reference | |||||
| Power indicated on plate on plate (1) | Line current | Apparent power | Maximum prospective line Isc | Max. continuous rated current | Max. transient current for 60 s | |||
| 380 V | 480 V | 380 V | 380 V/460 V | |||||
| kW | HP | A | A | kVA | kA | A | A | |
| 0.75 | 1 | 1.7 | 1.4 | 1,1 | 5 | 2.2 | 2.4 | ATV 21W075N4C |
| 1.5 | 2 | 3.2 | 2.6 | 2,1 | 5 | 3.7 | 4 | ATV 21WU15N4C |
| 2.2 | 3 | 4.6 | 3.7 | 3,0 | 5 | 5.1 | 5.6 | ATV 21WU22N4C |
| 3 | – | 6.2 | 5 | 4,1 | 5 | 7.2 | 7.9 | ATV 21WU30N4C |
| 4 | 5 | 8.2 | 6.5 | 5,3 | 5 | 9.1 | 10 | ATV 21WU40N4C |
| 5.5 | 7.5 | 11 | 8.7 | 7,2 | 22 | 12 | 13.2 | ATV 21WU55N4C |
| 7.5 | 10 | 14.7 | 11.7 | 9,7 | 22 | 16 | 17.6 | ATV 21WU75N4C |
| 11 | 15 | 21.1 | 16.7 | 13,9 | 22 | 22.5 | 24.8 | ATV 21WD11N4C |
| 15 | 20 | 28.4 | 22.6 | 18,7 | 22 | 30.5 | 33.6 | ATV 21WD15N4C |
| 18.5 | 25 | 34.5 | 27.6 | 22,9 | 22 | 37 | 40.7 | ATV 21WD18N4C |
| 22 | 30 | 41.1 | 33.1 | 27,3 | 22 | 43.5 | 47.9 | ATV 21WD22N4C |
| 30 | 40 | 58.2 | 44.4 | 37,3 | 22 | 58.5 | 64.4 | ATV 21WD30N4C |
| 37 | 50 | 68.9 | 54.4 | 45,3 | 22 | 79 | 86.9 | ATV 21WD37N4C |
| 45 | 60 | 83.8 | 65.9 | 55,2 | 22 | 94 | 103.4 | ATV 21WD45N4C |
| 55 | 75 | 102.7 | 89 | 67,6 | 22 | 116 | 127.6 | ATV 21WD55N4C |
| 75 | 100 | 141.8 | 111.3 | 93,3 | 22 | 160 | 176 | ATV 21WD75N4C |
